AVX TAJ标准钽电容规格书及封装参数

一、概述
  • ·此系列是一般用途贴片钽电容
  • ·六种型号尺寸
  • ·低配置可供选择
  • ·电容范围: 0.10-2200μF 电压范围:2.5-50V
二、产品图片及剖面图

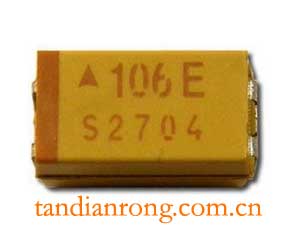

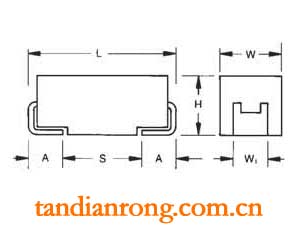

  • AVX TAJ系列钽电容实物图AVX TAC系列钽电容剖面图
三、型号尺寸
编码及对应尺寸对照表(单位:mm)
CodeEIA
Code
EIA
Metric
L±0.20
(0.008)
W+0.20 (0.008)
-0.10 (0.004)
H+0.20 (0.008)
-0.10 (0.004)
W1±0.20
(0.008)
A+0.30 (0.012)
-0.20 (0.008)
A12063216-183.20 (0.126)1.60 (0.063)1.60 (0.063)1.20 (0.047)0.80 (0.031)
B12103528-213.50 (0.138)2.80 (0.110)1.90 (0.075)2.20 (0.087)0.80 (0.031)
C23126032-286.00 (0.236)3.20 (0.126)2.60 (0.102)2.20 (0.087)1.30 (0.051)
D29177343-317.30 (0.287)4.30 (0.169)2.90 (0.114)2.40 (0.094)1.30 (0.051)
E29177343-437.30 (0.287)4.30 (0.169)4.10 (0.162)2.40 (0.094)1.30 (0.051)
V29247361-387.30 (0.287)6.10 (0.240)3.45±0.30
(0.136±0.012)
3.10 (0.120)1.40 (0.055)
四、产品编码解析
TAJC106M035RNJ
TypeCase Size
See table
above
Capacitance Code
pF code: 1st two
digits represent
significant figures
3rd digit represents
multiplier (number of
zeros to follow)
Tolerance
K=±10%
M=±20%
Rated DC Voltage
002=2.5Vdc
004=4Vdc
006=6.3Vdc
010=10Vdc
016=16Vdc
020=20Vdc
025=25Vdc
035=35Vdc
050=50Vdc
Packaging
R = Lead Free 7" Reel
S = Lead Free 13" Reel
A = Gold Plating 7" Reel
B = Gold Plating 13" Reel
H = Tin Lead 7" Reel
(Contact Manufacturer)
K = Tin Lead 13" Reel
(Contact Manufacturer)
H, K = Non RoHS
Specification
Suffix
NJ = Standard
Suffix
Additional
characters may be
added for special
requirements
V = Dry pack Option
(selected codes only)
五、TAJ系列规格书下载
  TAJ Series Standard Tantalum Data Sheet
